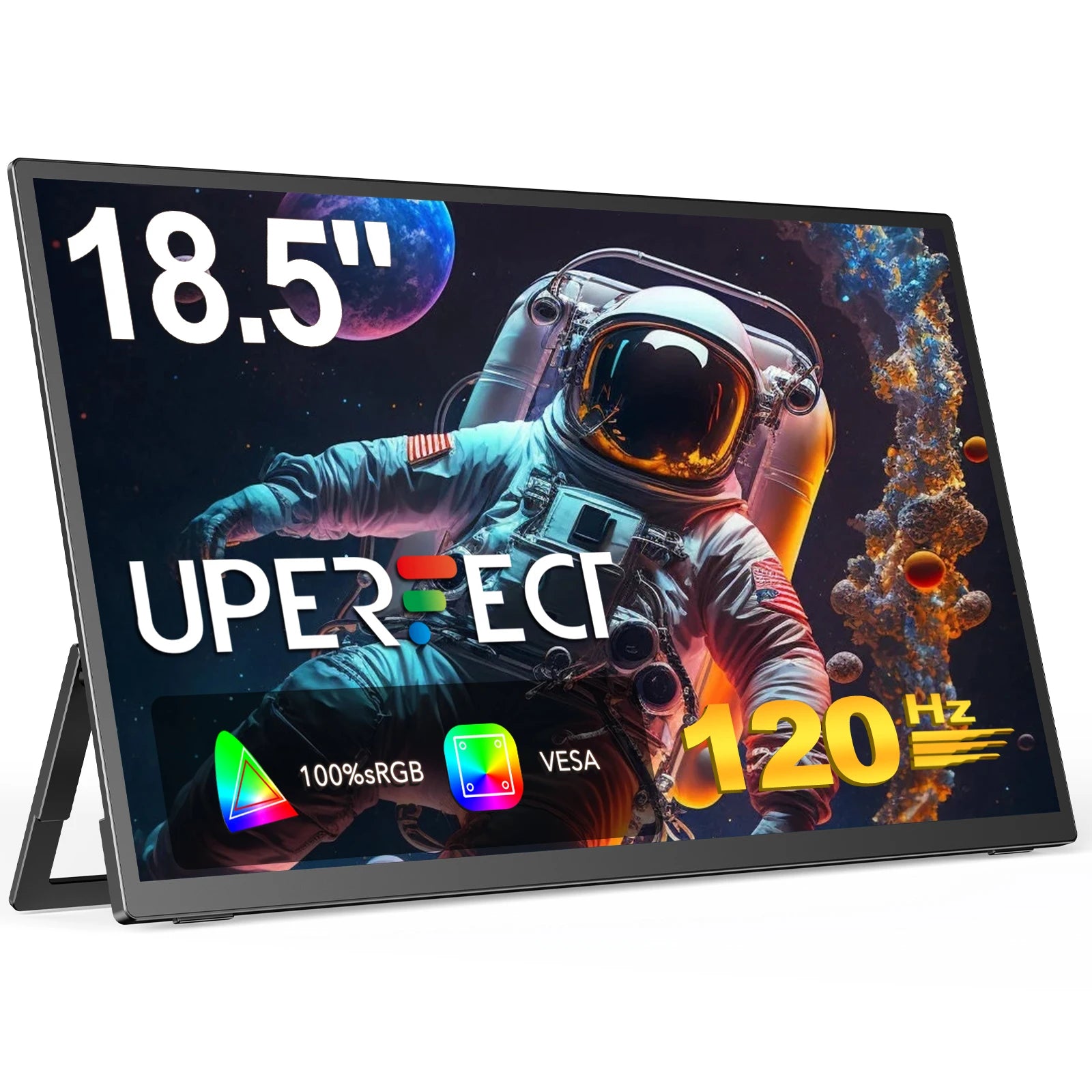

UPERFECT 18 18.5 Inch Portable Monitor:

Panel Type: 18.5” IPS Screen

Resolution: 1920*1080 FHD

Display Color: 16.7M

Visual Angle: 178° Full View Angle

Contrast Ratio: 1000:1

Brightness: 300 cd/㎡

Refresh Rate: 120Hz

NTSC: 72%

sRGB: 100%

Response time : 16ms

Display area: 408.96(W) × 230.04(H)

Bulit-in Speakers: Dual 8Ω 1W Speakers

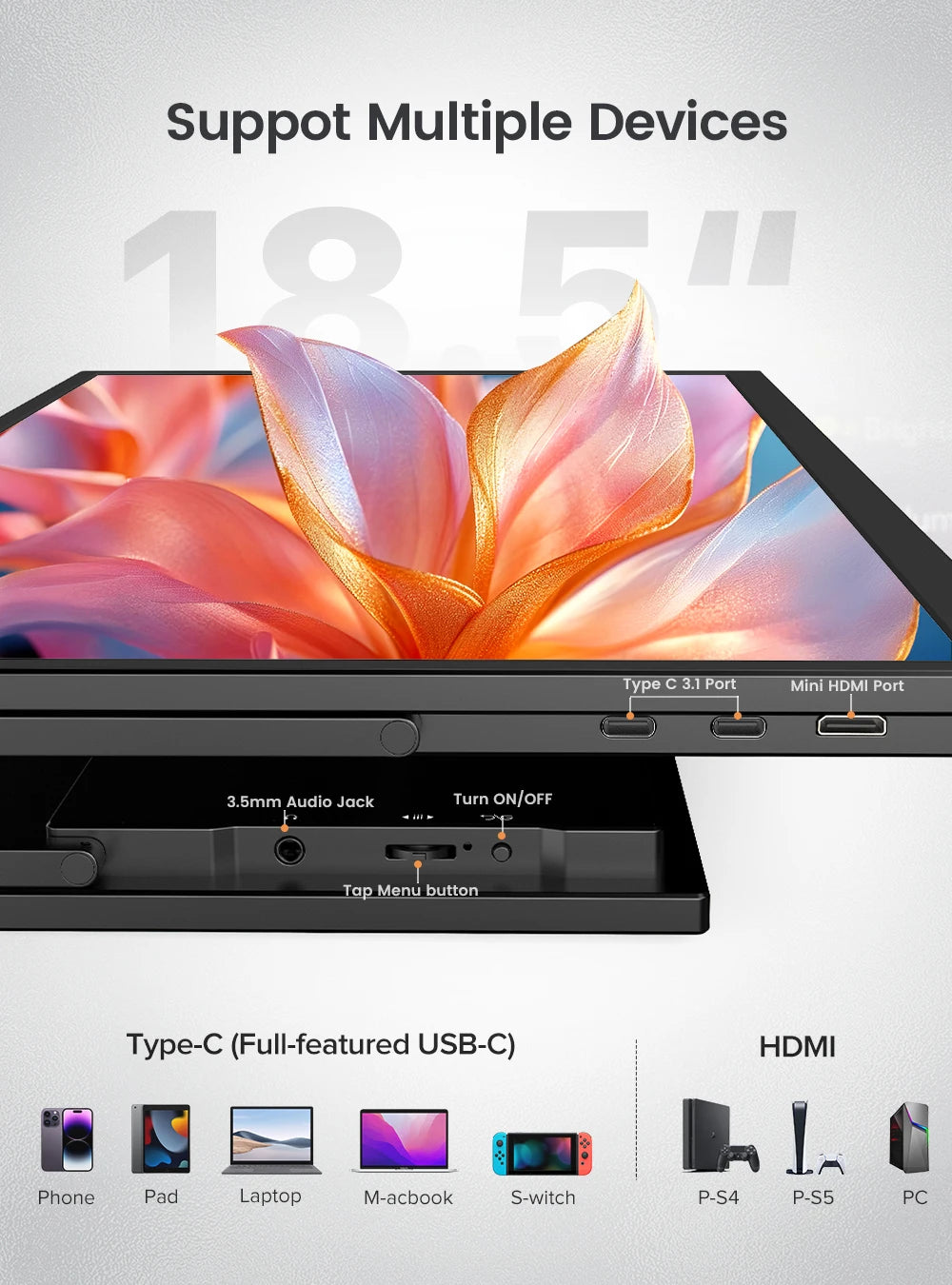

Input Interface: Full Function Type-C * 2, Mini HD * 1 ,3.5mm Audio*1，USB OTG *1 (Micro USB-B interface, hard disk data transmission, connecting mouse and keyboards.)

VESA:75mm*75mm

Screen Type: Matte

Color: Black

What's In the Box?

1*18.5” Portable Monitor
1*Quick Start Guide
2*Type-C to Type-C Cable
1*Mini HD Cable
1* PD Adapter

Support Single Type-C Cable For Display & Power Device Model

- Mobile Phones Support USB 3.1:

For Samsung: Samsung Galaxy S8, S8+, S9, S9+, S10, S10+, S10e,S20,S20+,S20 Ultra,S21,S21+,S21 Ultra,S22,S22+,S22 Ultra, Note 8, Note 9，Note 10

For Huawei: P50 Pocket/40 Pro/40/30/20/10/9 Series, Mate X/Xs/X2/40 Pro/40/30/20/10/9 Series, Honor Note 10,Honor Magic V/3/Pro/Pro+/4/4 Pro/4 Ultimate;

For SONY: Xperia 1 / 1 II/1 III/1 IV/5/5 II/5 III/10 III/Pro/Pro-I;

For OnePlus: 7/7 Pro/8/8 Pro/9/9R/9 Pro;

For OPPO: Find X3 Pro/Reno 10x Zoom/Reno 5G/R17 Pro (OPPO RX17 Pro in Europe);

For LG: V60/V50/V40/V35/V30/V30+/V20 Series,G8/G7/G6/G6+(with Dec 2018 update)*functionality has not been tested*/G5 Series,Q8;

For HTC: 10/U Ultra/U11/U11+/U12+/U19e,Exodus 1;

For ASUS:ROG Phone/Phone II/Phone 3/Phone 5/Phone 5s Series,ZenFone 3 Ultra,ZenFone AR,ZenFone Ares;

For Motorola: Edge+/Edge S (China variant)/Moto G100 (global version for European market)/ Edge 20 Pro/30 Pro(global variant)/X30;

For Xiaomi: Black Shark 2/3/4;

For ZTE: Axon 9 Pro/10 Pro,Nubia Red Magic 6S Pro/7/7 Pro;

Others: BlackBerry Key2,BQ Aquaris X2,Essential Phone,Fairphone 4,Lenovo Legion Phone Duel/2 Pro/Duel 2,NOKIA 9 PureView, Microsoft Lumia 950/950 XL, HP Elite x3,Razer Phone/Phone 2,Fairphone 4;

*NOTE: If you can not find your devices above, please use IOS/Android to HDMI Adapter for connecting.

- Laptops Support Thunderbolt 3 or USB 3.1:

For Apple: Apple MacBook Pro (Late 2016) and newer,Apple MacBook Air (Late 2018) and newer ;

For Huawei: MateBook D/X/X Pro/E/13, MagicBook;

For ASUS: ZenBook, U4100UN, U5100UQ, ROG Series;

For HP: EliteBook Folio G1, Spectre 13,ZbookZbook Studio;

For Dell: G3/G5/G7 Series, Inspiron 5000/7000 Series, XPS12/13/15;

For Lenovo: Thinkpad E580/T470/T470s/T480/T480s/X1 Carbon (2017-2019);

For MIUI: Air 12.5"/133.3", Pro 15.6", MI Game NoteBook

For Google: ChromeBook Pixels

For Razer: Blade Stealth Series (All)

For Microsoft: Surface Book 2

Others: Acer Swift 5,MSI GS60 6QE,Gigabyte Aero 15x/15 x9/15 y9;

*NOTE: If you can not find your devices above, please use mini HDMI cable instead.

Q: Why does my monitor not turn on?

1.Please check whether the Type-C port of your device is a full-featured Type-C port,which can support power and signal transmission. If not, please use HDMl to MiniHDMl cable to transmit video signal, and use USB-C to USB-C cable to connectexternal power supply.

2.This may be caused by insufficient power supply.The minimum power requirementfor the monitor is PD 18W.Especially when you need to run the display at 2K 120hz,the power consumption will be relatively large, it is recommended to use an externalpower supply, otherwise the monitor may not work properly.

3.lf the above steps still cannot solve your issue, please feel free to contact us.

Q: It says "no signal", what to do?

1.When connecting with a USB-C cable, make sure your device supports USB3.1./Thunderbolt 3.lf not, please add a Mini HDMl to HDMl cable for signaltransmission.

2.Please make sure to use the original cables.

3.Please try another device. If it still fails, please tell us for a replacement.

Q: why does my monitor turn off when l turn up the brightness?

This is caused by insufficient power supply.Turning up the brightness will increasethe power consumption, which can be solved by an external power supply.

Q:Abnormal conditions occurred - such as a splash screen, spots when using themonitor or constant restarts.

1.lt is generally caused by an insufficient power supply.The monitor require highpower support. Please use the original cable included to power the monitor.

2.If you use a mobile power bank to power the monitor, please confirm whether thepower of the power bank reaches 30W or more.In addition, if you need a power bank,please contact us

3.lf none of the above solutions work, please try another device.lf it still failed,please contact us for a replacement.

Warm tips:

lf you find any issues with your monitor, please contact us before returning it. We will help you solve your problems and tryour best to make you satisfied.We take full responsibility for our products.
lf there are any defects that cannot be solved, we will refund or send you areplacement.
